CP-UNC-TA21L3C-Q-0360

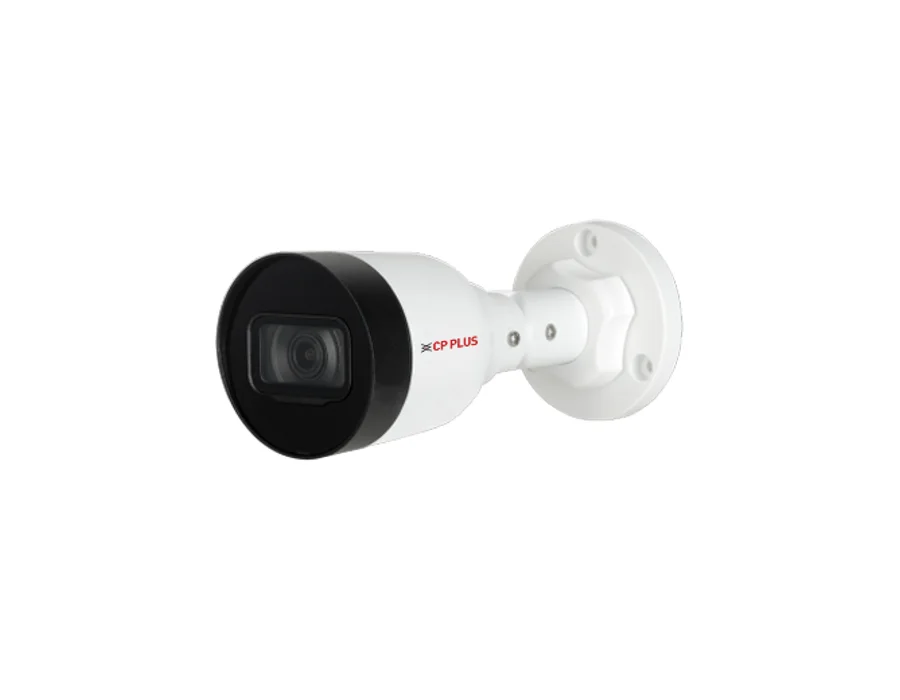

2MP Network IR Bullet Camera - 30Mtr. Features 1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters) Max. 2MP (1920 × 1080)@1-25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream Support Built-in Mic 3.6mm fixed Lens DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 30 Mtr., PoE, IP67 Specifications Image Sensor: 1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters) Effective Pixels: 1920 (H) × 1080 (V) Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 128 MB ROM: 128 MB DORI Distance: 52.4 m (Detect), 21.0 m (Observe), 10.5 m (Recognize), 5.2 m (Identify) Gain Control (AGC): Auto/Manual Lens Type: Fixed-focal Max. Aperture: F2.0 Lens Mount: M12 Close Focus Distance: 0.9 m Lens: 3.6mm fixed Lens Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) S/N Ratio: >56dB IR Number: 1 IR LED IR: IR Range of 30 Mtr. IR Control: Auto, Manual Smart IR: Support Angle of View: H: 86°, V: 47°, D: 103° Back Light Compensation: BLC/ HLC/ DWDR Day/Night: Auto(ICR)/Color/B/W Iris Control: Fixed Resolution: 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) stream Capability: Triple stream Frame Rate: Main stream: 2MP (1920 × 1080)@1-25/30fps, 1.3MP, 720P@1-25/30fps Sub stream 1: 720p( 1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Format: PAL/NTSC Privacy Mask: 4 areas ROI: Support (4 areas) OSD: Camera title, Date & Time Audio: Built-in Mic Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Bit Rate Control: CBR/VBR Human & Motor Vehicle Detection: Support the classification and accurate detection of human & Motor Vehicle Human body Detection: Support the classification and accurate detection of human Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Alarm Event: Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Mirror Function: Support User/Host: 6 (Total bandwidth: 36 M) Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2M resolution and lower) Browser: IE, Chrome, Firefox Weatherproof Standard: IP67 Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 1.3 W (12 VDC), 1.6 W (PoE); Max. (H.265 + intelligence on + WDR+ IR intensity): 3.3 W (12 VDC), 4.2 W (PoE) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95%(RH), non-condensing Dimension: 162.6 mm × 70 mm × 70 mm Casing: Metal + Plastic Weight: 220g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
