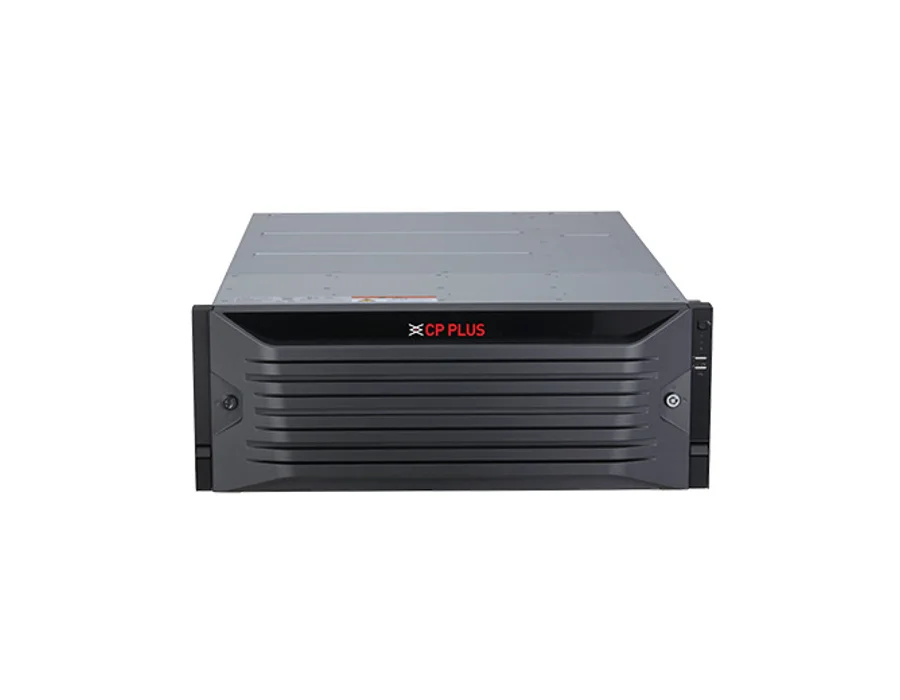

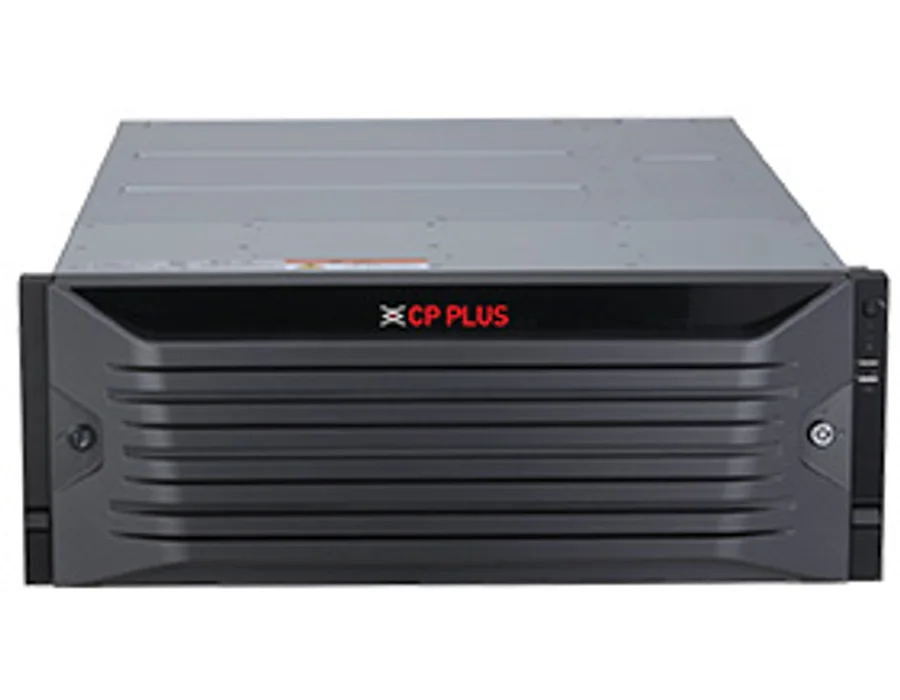

CP Plus CP-UVS-G24R-J – 24HDD Embedded Video Storage

24HDD Embedded Video Storage Features Max 256 IP Camera Inputs 24 HDDs, SAS, Hot-Swap Max 512 Mbps incoming/recording/forwarding bandwidth. Standard dual controller for hardware redundancy 64-bit High-performance multi-core processor Supports video stream/ Picture direct storage mode and IPSAN storage mode Supports video stream/ Picture direct storage mode and IPSAN storage mode Supports Automatic Network Replenishment (ANR) SAS cascade for expanded storage space 1+1 redundant 80PLUS platinum power supply Modular and drawer-like design Specifications Processor: 64-bit high-performance multi-core processor Controller: Dual controller Operating System: Embedded LINUX Cache: 8 GB by default (extendable to 32 GB)/controller IP Camera Input: 256 Channel User Interface: Web SAS: 1 × SAS (up to 12 Gbps)/controller Network Port: 1 x 1-GbE management port/controller; 4 × 1-GbE LAN ports/controller Network Port Extension: 4 × 1-GbE LAN ports/controller (optional) 2×10-GbE optical fiber ports/controller (optional) eSATA: 1 × eSATA/controller RS-232: 1 × DB9 /controller USB: 2 × USB3.0 and 2 × USB2.0/controller HDMI: 1 x HDMI/controller, only for debug HDD Interface: 24 slots, SATA; SAS Max.20 TB/HDD hot swapping CMR support enterprise-grade HDD Disk Bay: 24 RAID: RAID 0/1/5/6/10/50/60; (with enterprise-grade HDD) Disk Group: Support iSCSI: Supports client and Server Network Disk: Supports client Record Management: Supports record control (continuous, event-based, scheduled, scheduled & event-based) Storage Pool: Support Thermal Camera Compatibility: Works with camera for fire alarm, temperature alarm, temperature difference alarm, hot spot, cold spot, smoking and calling AI by Camera: Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gath ering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people counting camera required), face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection) People Counting: Works with camera for tripwire people counting, regional people counting and queue people counting Video Direct Storage (Private Protocol): Incoming: 256-channel (bandwidth: 512 Mbps) Recording:256-channel (bandwidth: 512 Mbps) Outgoing: 256-channel (bandwidth: 512Mbps) Playback: 16-channel (bandwidth: 32Mbps) Video Direct Storage (Onvif): Incoming: 256-channel (bandwidth: 512 Mbps) Recording: 256-channel (bandwidth: 512 Mbps) Outgoing: 256-channel (bandwidth: 512 Mbps) Playback: 16-channel (bandwidth: 64 Mbps) Video Direct Storage (Auto Connect): Incoming: 256channel (bandwidth: 512 Mbps) Recording:256-channel (bandwidth: 512 Mbps) Outgoing: 256-channel (bandwidth: 512 Mbps) Playback: 16-channel (bandwidth:32Mbps) Picture Direct Storage: Incoming: 120-channel (550 KB/picture) Recording:120-channel (550 KB/picture) Outgoing: 120-channel (550 KB/picture) IPSAN Performance: 180-channel × 2 Mbps video stream writing and 12-channel × 2 Mbps video playback ( I/O size of VMS is 64 KB) Bullet-PTZ Smart Track: Works with camera for manual tracking, auto tracking, click positioning and select positioning Fisheye Dewarp: Supports dewarping for fisheye cameras Multi-channel Playback: Web playback, max. 16-channel playback Record Mode: Auto record; manual record; search video detection; IO alarm; thermal imaging; intelligent event; all record file Storage: Internal HDD and network disk Browser: Chrome; PCAPP; IE9 or higher; Firefox Network Mode: NIC binding mode such as multiple-address mode, load balance, fault-tolerance, link aggrega tion, etc Backup: HDD, peripheral USB storage device Playback Function: 1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame 2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off General Alarm: Motion detect; tampering; IPC external alarm Anomaly Alarm: IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; fan malfunction; no HDD; network security exception; power exception; disk health exception; RAID exception; storage pool exception; temperature alarm; share service Alarm Linkage: Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, smart tracking and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; InstaOn; iSCSI; FTP ; SMB; NFS; ONVIF (Profile S); CGI; SDK Video Compression: Instastream, H.265, H.264+, H.264, MJPEG Audio Compression: G.711A; G.711U; PCM; G726 Power Redundancy: 1+1 Power Supply: 100–127V/200–240V AC, 50/60Hz, 5A/2.5A Fan: Intelligent speed regulation fan Power Consumption: <120 W (without HDD, idling) <500 W (all HDDs connected) Operating Temperature: 0°C to 45°C (+32°F to +113°F) Operating Humidity: 10%–80% (RH) (non-condensation) Operating Altitude: ≤5000 m Dimension: Chassis: 446 mm × 175mm × 736.5 mm (17.56 Net Weight: 29kg
