SKU: CPPLUS-2132 · Model: CP-UVS-6487R-V3
In Stock
Enter your PIN code to find delivery options and a nearby store.

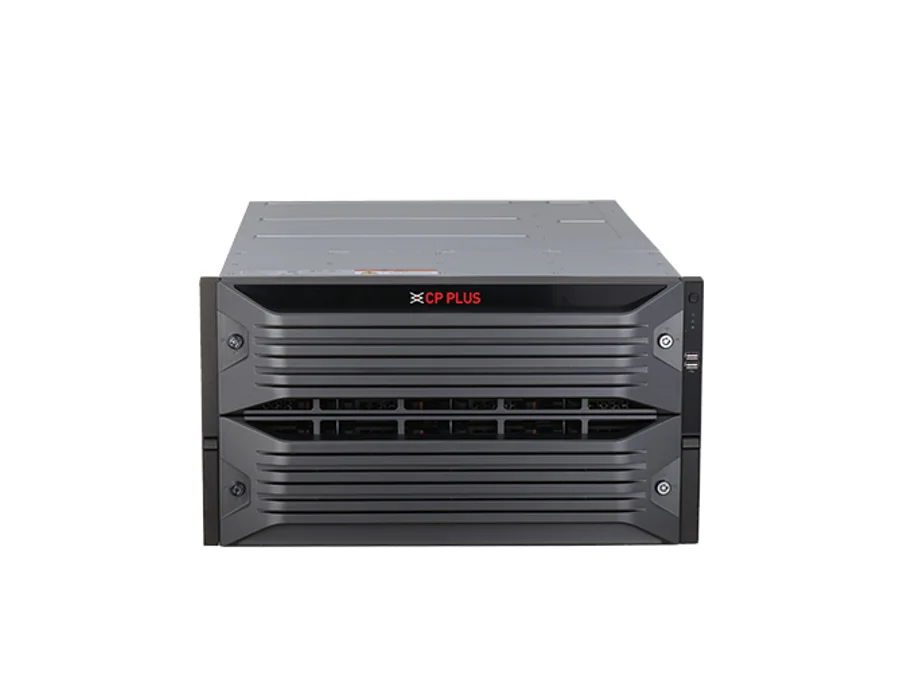

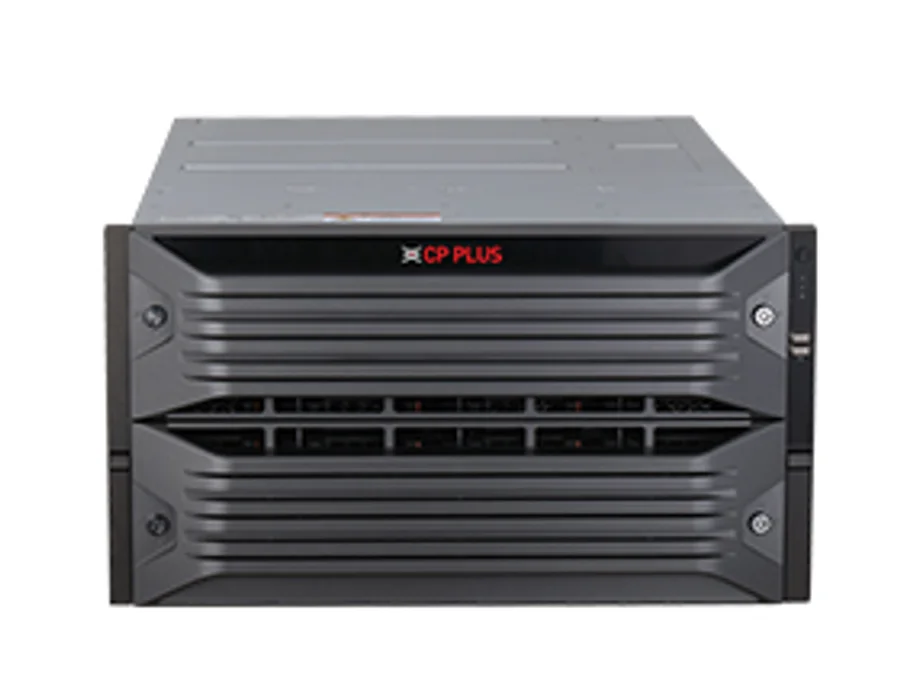

48-HDD Embedded Video Storage Features Max 320 Channel IP camera inputs 48 bays, SATA, Hot-Swap Max 800 Mbps incoming/recording/forwarding bandwidth Supports video stream direct storage mode and IPSAN storage mode Supports N+M cluster Supports Automatic Network Replenishment (ANR) 1+1 redundant 80PLUS platinum power supply Specifications Processor: 64-bit high-performance multi-core processor Operating System: Embedded Linux OS IP Camera Input: 320 Channel User Interface: Web (PCAPP) Network Mode: NIC binding mode such as multiple-address mode, Load balance, Fault-tolerance, Link aggregation, etc N+M Cluster: Support Video Compression: Instastream, H.265, H.264+, H.264, MJPEG Audio Compression: G.711A, G.711U, PCM, G726 Disk Group: Support General Alarm: Motion detect, Tampering, IPC external alarm Abnormality Alarm: IPC offline alarm, Storage error, HDD full, Video frame loss, SSD exception, IP conflict, MAC conflict, Login lock, Fan malfunction, No HDD, Network security exception, Power exception, Disk health exception, RAID exception, Storage pool exception, Temperature alarm, Share service Storage Pool: Support iSCSI: Supports client and Server Network Disk: Supports client Browser: Chrome, PCAPP, IE9 or higher, Firefox Multi-channel Playback: Max. 16 Channel playback RAID: RAID 0/1/5/6/10/50; (with enterprise-grade HDD) Video Direct Storage (Private Protocol): Incoming: 320 Channel (bandwidth: 800 Mbps), Recording: 320 Channel (bandwidth: 800 Mbps), Outgoing: 320 Channel (bandwidth: 800 Mbps), Playback: 32 Channel (bandwidth: 64 Mbps) Video Direct Storage (Auto Register): Incoming: 320 Channel (bandwidth: 800 Mbps), Recording: 320 Channel (bandwidth: 800 Mbps), Outgoing: 320 Channel (bandwidth: 800 Mbps), Playback: 32 Channel (bandwidth: 64 Mbps) Backup Mode: HDD, Peripheral USB storage device Controller: Single controller Cache: 8 GB by default (extendable to 64 GB) Thermal: Works with camera for fire alarm, Temperature alarm, Temperature difference alarm, Hot spot, Cold spot, Smoking and calling Fan: Intelligent speed regulation fan PTZ Smart Track: Works with camera for manual tracking, Auto tracking, Click positioning and select positioning Interface Ports: 1 eSATA Port, 1 RS-232 port, for debug or COM data transmission, 4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel , 1 HDMI Port, only for debug Ethernet: 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports. (gigabit electrical port) 1 RJ-45 10/100 Mbps self-adaptive Ethernet ports. (100 Mbps electrical port) Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, InstaOn, iSCSI, FTP, SMB, NFS, ONVIF (Profile S, T and G), CGI, SDK Network Port Extension: 4 × 1-GbE LAN ports (optional), 2 × 10-GbE optical fiber ports (optional) Storage Method: Internal HDD and network disk Power Redundancy: 1+1 redundant power Operating Temperature: 0 °C to 45 °C (+32 °F to +113 °F) Operating Humidity: 10%–80% (RH), non-condensing Power Supply: 100-240 VAC 50-60 Hz Power Consumption: <100 W (without HDD, idling) <500 W (all HDDs connected) Dimension: Chassis: 446 mm × 261.4 mm × 736.5 mm Max. size: 482.6 mm (with hanger) × 264.1 mm × 736.5 mm Weight: 35200 g
| Fan | Intelligent speed regulation fan |
|---|---|
| RAID | RAID 0/1/5/6/10/50; (with enterprise-grade HDD) |
| Cache | 8 GB by default (extendable to 64 GB) |
| iSCSI | Supports client and Server |
| Weight | 35200 g |
| Browser | Chrome, PCAPP, IE9 or higher, Firefox |
| Thermal | Works with camera for fire alarm, Temperature alarm, Temperature difference alarm, Hot spot, Cold spot, Smoking and calling |
| Ethernet | 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports. (gigabit electrical port) 1 RJ-45 10/100 Mbps self-adaptive Ethernet ports. (100 Mbps electrical port) |
| Dimension | Chassis: 446 mm × 261.4 mm × 736.5 mm Max. size: 482.6 mm (with hanger) × 264.1 mm × 736.5 mm |
| Processor | 64-bit high-performance multi-core processor |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, InstaOn, iSCSI, FTP, SMB, NFS, ONVIF (Profile S, T and G), CGI, SDK |
| Controller | Single controller |
| Disk Group | Support |
| Backup Mode | HDD, Peripheral USB storage device |
| N+M Cluster | Support |
| Network Disk | Supports client |
| Network Mode | NIC binding mode such as multiple-address mode, Load balance, Fault-tolerance, Link aggregation, etc |
| Power Supply | 100-240 VAC 50-60 Hz |
| Storage Pool | Support |
| General Alarm | Motion detect, Tampering, IPC external alarm |
| Storage Method | Internal HDD and network disk |
| User Interface | Web (PCAPP) |
| IP Camera Input | 320 Channel |
| Interface Ports | 1 eSATA Port, 1 RS-232 port, for debug or COM data transmission, 4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel , 1 HDMI Port, only for debug |
| PTZ Smart Track | Works with camera for manual tracking, Auto tracking, Click positioning and select positioning |
| Operating System | Embedded Linux OS |
| Power Redundancy | 1+1 redundant power |
| Abnormality Alarm | IPC offline alarm, Storage error, HDD full, Video frame loss, SSD exception, IP conflict, MAC conflict, Login lock, Fan malfunction, No HDD, Network security exception, Power exception, Disk health exception, RAID exception, Storage pool exception, Temperature alarm, Share service |
| Audio Compression | G.711A, G.711U, PCM, G726 |
| Power Consumption | <100 W (without HDD, idling) <500 W (all HDDs connected) |
| Video Compression | Instastream, H.265, H.264+, H.264, MJPEG |
| Operating Humidity | 10%–80% (RH), non-condensing |
| Operating Temperature | 0 °C to 45 °C (+32 °F to +113 °F) |
| Multi-channel Playback | Max. 16 Channel playback |
| Network Port Extension | 4 × 1-GbE LAN ports (optional), 2 × 10-GbE optical fiber ports (optional) |
| Video Direct Storage (Auto Register) | Incoming: 320 Channel (bandwidth: 800 Mbps), Recording: 320 Channel (bandwidth: 800 Mbps), Outgoing: 320 Channel (bandwidth: 800 Mbps), Playback: 32 Channel (bandwidth: 64 Mbps) |
| Video Direct Storage (Private Protocol) | Incoming: 320 Channel (bandwidth: 800 Mbps), Recording: 320 Channel (bandwidth: 800 Mbps), Outgoing: 320 Channel (bandwidth: 800 Mbps), Playback: 32 Channel (bandwidth: 64 Mbps) |
