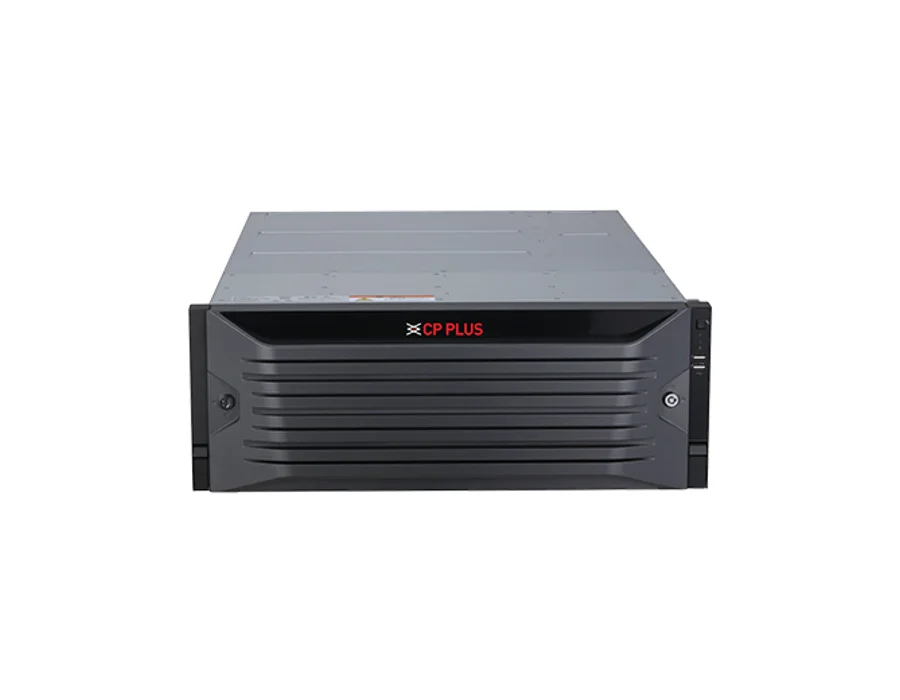

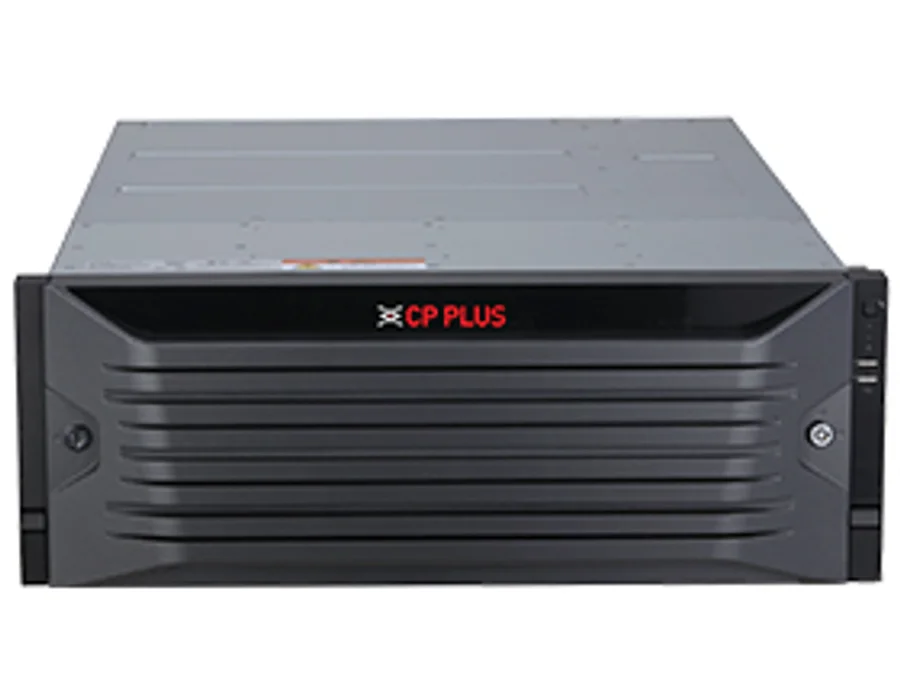

CP Plus CP-UVS-6247R-V2 – 24-HDD Embedded Video Storage

24-HDD Embedded Video Storage Features Max 320 IP Camera Inputs 24 HDDs, SATA, Hot-Swap Max 800Mbps Incoming/recording/forwarding Bandwidth Supports video stream direct storage mode and IPSAN storage mode Supports N+M cluster Supports RAID 0/1/5/6/10/50/60, Hotspare Supports Automatic Network Replenishment (ANR) 1+1 redundant 80PLUS platinum power supply Specifications Processor: 64-bit high-performance multi-core processor Controller: Single controller Operating System: Embedded LINUX Cache: 8 GB by default (extendable to 64 GB) IP Camera Input: 320 Channel User Interface: Web AI by Camera: Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gathering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people counting camera required), face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection) IP SAN Performance: 280-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback (I/O size of VMS is 64 KB) 400-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback (I/O size of VMS is 512 KB) Thermal Camera Compatibility: Works with camera for fire alarm, temperature alarm, temperature difference alarm, hot spot, cold spot, smoking and calling People Counting: Works with camera for tripwire people counting, regional people counting and queue people counting Bullet-PTZ Smart Track: Works with camera for manual tracking, auto tracking, click positioning and select positioning Fisheye Dewarp: Supports dewarping for fisheye cameras Cluster: N+M Smart Phone: iPhone, iPad, Android Video Compression: H.265; Smart H.264+; H.264; MJPEG Encode Strategy: Instastream Audio Compression: G.711A; G.711U; PCM; G726 RAID: RAID 0/1/5/6/10/50/60; (with enterprise-grade HDD) Video Direct Storage (Private Protocol): Incoming: 320-channel (bandwidth: 800 Mbps), Recording: 320-channel (bandwidth: 800 Mbps), Outgoing: 320-channel (bandwidth: 800 Mbps), Playback: 32-channel (bandwidth: 64 Mbps) Video Direct Storage (Onvif): Incoming: 320-channel (bandwidth: 800 Mbps), Recording: 320-channel (bandwidth: 800 Mbps), Outgoing: 320-channel (bandwidth: 800 Mbps), Playback: 32-channel (bandwidth: 64 Mbps) Video Direct Storage (Auto Register): ncoming: 320-channel (bandwidth: 800 Mbps), Recording: 320-channel (bandwidth: 800 Mbps), Outgoing: 320-channel (bandwidth: 800 Mbps), Playback: 32-channel (bandwidth: 64 Mbps) Picture Direct Storage: Incoming: 120-channel (550 KB/picture), Recording: 120-channel (550 KB/picture), Outgoing: 120-channel (550 KB/picture), Playback: 32-channel (550 KB/picture) Multi-channel Playback: Max. 16-channel playback Record Mode: Auto record; manual record; search video detection; IO alarm; thermal imaging; intelligent event; all record file Storage Method: Internal HDD and network disk Playback Function: Play, pause, stop, fast forward, fast backward, reverse play, frame by frame, Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off Backup Mode: HDD, peripheral USB storage device Hard Disk: 24 slots, SATA Max.20TB/HDD hot swapping CMR support enterprise-grade HDD Disk Group: Support iSCSI: Supports client and Server Browser: Chrome; PCAPP; IE9 or higher; Firefox Network Disk: Supports client Record Management: Supports record control (continuous, event-based, scheduled, scheduled & event-based) Storage Pool: Support Network Mode: NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc General Alarm: Motion detect; tampering; IPC external alarm Anomaly Alarm: IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; fan malfunction; no HDD; network security exception; power exception; disk health exception; RAID exception; storage pool exception; temperature alarm; share service Alarm Linkage: Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, smart tracking and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels Interface Ports: 1 eSATA Port, 1 RS232 port, for debug or COM data transmission, 4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel , 1 HDMI Port, only for debug Ethernet: 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports. (gigabit electrical port) 1 RJ-45 10/100 Mbps self-adaptive Ethernet ports. (100 Mbps electrical port) Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; iSCSI; FTP; SMB; NFS; ONVIF (Profile S, T and G); CGI; SDK Network Port Extension: 4 × 1-GbE LAN ports (optional), 2 × 10-GbE optical fiber ports (optional) Power: 1+1 redundant power Power Supply: 100-240 VAC 50-60 Hz Power Consumption: <100 W (without HDD, idling), <300 W (all HDDs connected) Operating Temperature: 0 °C to 45 °C (+32 °F to +113 °F) Operating Humidity: 10%–80% (RH), non-condensing Operating Altitude: 5000 m Fan: Intelligent speed regulation fan Dimension: Chassis: 446mm × 175mm × 736.5mm Weight: 28.4 kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
