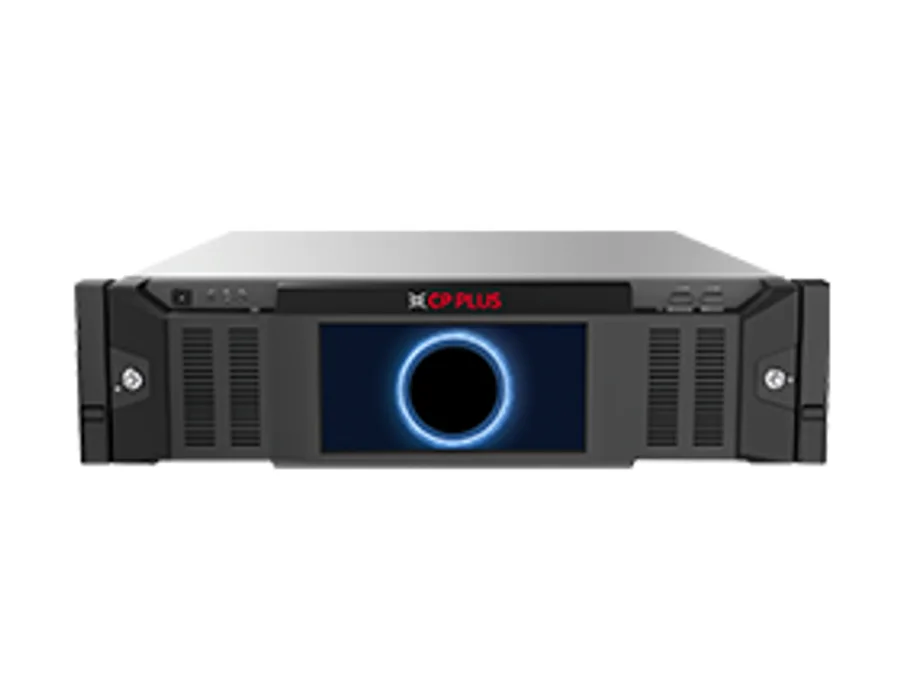

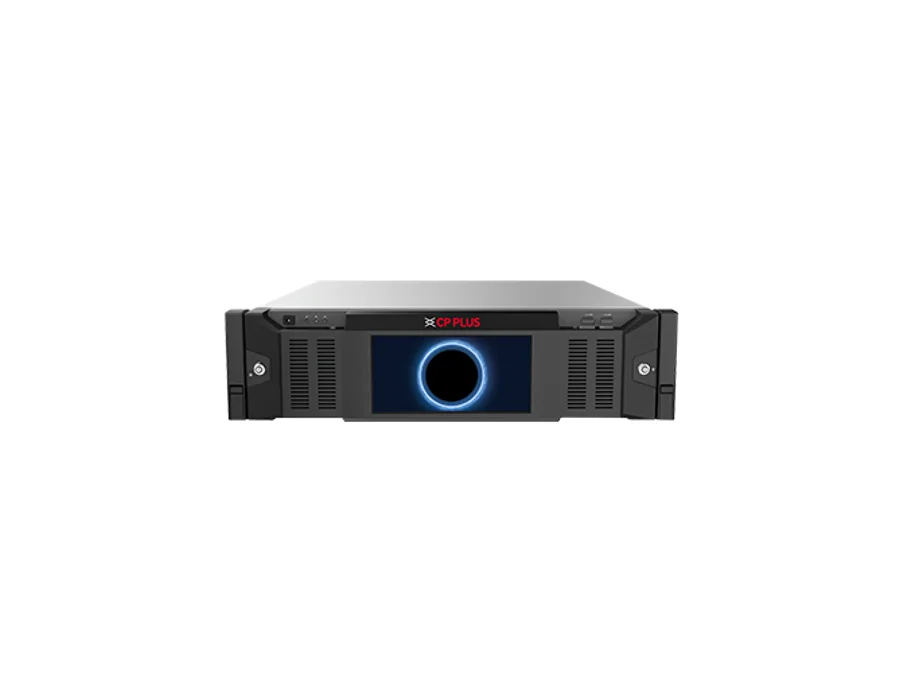

CP Plus CP-UNS-7216DR-V3 – Surveillance Management Centre

Surveillance Management Centre Features High-performance stream media transfer and storage capability Support local storage and IP-SAN storage Support GIS map (Google, Raster Map) Support ONVIF Support intelligent device connection Support ANR (Automatic Network Replenishment) Front panel can displays system service status Real-time live video monitoring with flexible layouts Video wall support for large-screen monitoring AI-powered target search and movement analysis Zone-based access control with remote door management Two-way video intercom with emergency communication Specifications Processor: Intel i5-12400, 64 bits 6 Core Processor Operating System: Embedded Linux Memory: 16 GB System Disk: Seagate 7200 RPM Enterprise Class HDD 6 TB Motherboard: Embedded board (24x7 Operation) Hard disk hot swap: Support hot swap and online replacement Hard disk compatibility: SAS/SATA disk Power Redundancy: 1+1 redundant power Ethernet: 4 Ethernet ports (100/1000 Mbps) Interface Ports: 2 × USB 2.0 on front panel; 2 × USB 3.0 on rear panel, 4 HDMI ports, 1 VGA port HDD Installation: Support 15 HDDs (3.5 Storage: Up to 200 TB per server HDD Mode: Single Bandwidth of Video Storage per: 600 Mbps RAID: Single, Raid 0/1/5/6/10 Roles: 100 Users (PC Client and EVMS Pro): 50 online users and 200 total users Roles per User: 32 User Groups: 20 Users per User Group: 200 General Recording Plans: 3,000 Event Sources for Event Rules: 3,000 Combined Event Rules: 100 Combined Events: 1,000 Generic Event Rules: 50 Hierarchies: 8 Max. Size of Raster Map: 15MB Raster Maps: 256 Resources on GIS Map: 300 (After merging); 2,000 (Before merging) Resources per Raster Map: 300 (After merging); 2,000 (Before merging) Persons and Vehicle Groups: 999 Group Levels: 10 Cards: 200,000 Faces: 100,000 Vehicles: 20,000 Vehicle Watch Lists: 16 Persons for Door Access Rules: 10,000 (1 password, 2 face images, 3 fingerprints, and 5 cards for each person) Zones: 256 Door Access Rules: 200 Public Passwords: 1,500 Appointments in Progress: 10,000 People Counting Groups: 8 People Counting Rules Per Group: 20 Vehicles.: 20,000 Vehicle Groups: 256 Main Parking Lots: 8 Entrances: 64 Entrance/Exit Points: 64 Rules of Sending Scheduled Reports: 32 Notification Center Message: 1,000 Quick Commands per User: 20 Event Records: 5,000,000 ANPR Records: 5,000,000 Metadata Records: 5,000,000 Access Records: 5,000,000 Video Intercom Records: 5,000,000 Historical Count Records: 5,000,000 In Area Statistical Records: 5,000,000 Heat Map Records: 5,000,000 Entrance Records: 5,000,000 People Entering and Exit Records: 5,000,000 Forced Exit Records: 5,000,000 Service Logs: 5,000,000 Power: Max. power 315 W, Stable power 210 W Working Temperature: 0°C to +40°C (+32°F to +104°F) Working Humidity: 10%–80% (RH), non-condensing Storage Temperature: –20°C to +70°C (–4°F to +158°F) Storage Humidity: 5%–90% (RH), non-condensing Working Altitude: 0 m–5000 m (0 ft–16,404.20 ft) Dimension: 444.8 mm × 133.2 mm × 522.2 mm Weight: 19100g Sub Servers: 5 servers Devices: Single Server: 2,000 devices; Multiple Servers: 6,000 devices Auto Connect Devices: Single Server: 1,000 devices; Multiple Servers: 5,000 devices Add Devices by ONVIF: Single Server: 500 devices, 1,000 channels; Multiple Servers: 2,500 devices, 5,000 channels Face Recognition Devices and Channels: Single Server: 20 devices, 100 channels; Multiple Servers: 100 devices, 500 channels Devices Accessed via RTSP: Single Server: 500 devices, 1,000 channels; Multiple Servers: 2,500 devices, 5,000 channels Access Control Devices: Single Server: 200 devices; 500 doors; Multiple Servers: 600 devices; 1,500 doors Alarm Controller: Single Server: 64 devices; 640 zones; Multiple Servers: 320 devices; 3,200 zones Emergency Phone Towers: Single Server: 20 devices; 40 channels; Multiple Servers: 100 devices; 200 channels Heat Map Channels: Single Server: 32 channels; Multiple Servers: 160 channels Total Incoming Bandwidth: Single Server: 600 Mbps; Multiple Servers: 3,000 Mbps Incoming Video Bandwidth: Single Server: 600 Mbps; Multiple Servers: 3,000 Mbps Incoming Picture Bandwidth: Single Server: 100 Mbps; Multiple Servers: 500 Mbps Total Outgoing Bandwidth: Single Server: 600 Mbps; Multiple Servers: 3,000 Mbps Outgoing Video Bandwidth: Single Server: 600 Mbps; Multiple Servers: 3,000 Mbps Outgoing Picture Bandwidth: Single Server: 100 Mbps; Multiple Servers: 500 Mbps Total Storage Bandwidth: Single Server: 600 Mbps; Multiple Servers: 3,000 Mbps Video Storage Bandwidth: Single Server: 600 Mbps; Multiple Servers: 3,000 Mbps Prerecording Bandwidth for Alarm Recordings: Single Server: 400 Mbps; Multiple Servers: 2,000 Mbps Max. Capacity per Storage Server (Local and IPSAN): Single Server: 200 TB; Multiple Servers: 1 PB Storage of Events or Alarms without Pictures: Single Server: 240 per sec; Multiple Servers: 480 per sec Combined Event: Server: 100 per sec Access Control Events: Single Server: 240 per sec; Multiple Servers: 480 per sec CPU: Recommended: Intel® Core i7-11700 @2.50 GHz; Minimum: Intel® Core i5-9500 @3.00 GHz Memory.: 16 GB Graphics Card: Recommended: NVIDIA® GeForce® RTX 3060; Minimum: Intel® UHD Graphics 630 Hard Drive Capacity: Recommended: 200 GB free space for EVMS Pro Client; Minimum: 100 GB free space for EVMS Pro Client Ethernet Port: 1,000 Mbps Client Operating System: Microsoft® Windows 10 20H2 Pro (32-bit) Microsoft® Windows 10 20H2 Pro (64-bit) Microsoft® Windows 11 21H2 Pro (64-bit)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
