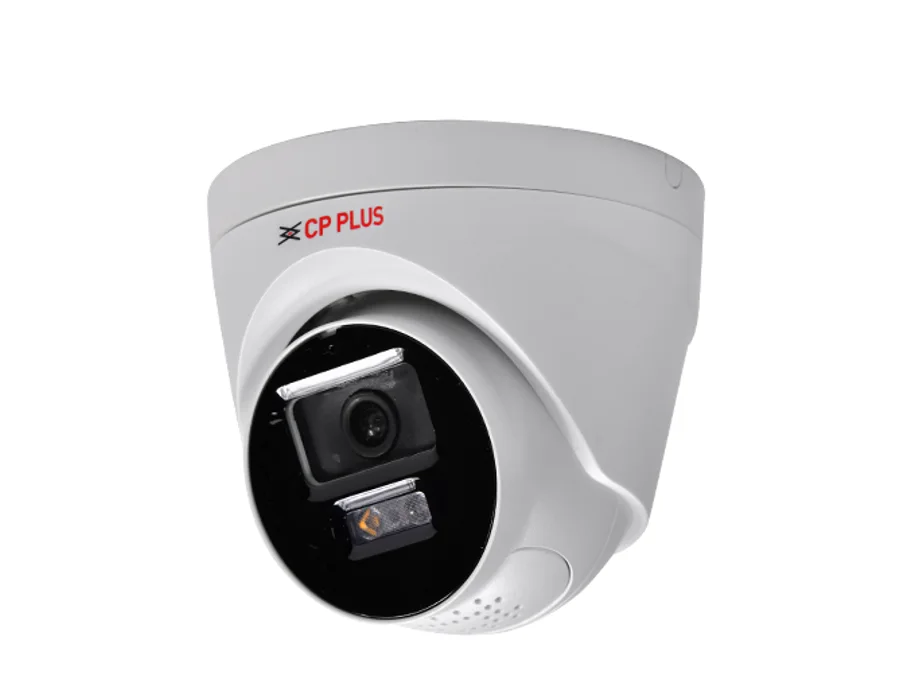

CP PLUS CP UNC DA21L3BLQ

2MP Dual Light Dome Camera - 30Mtr. Features 1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 2MP (1920 × 1080)@1–25/30 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream Support Built-in Mic, Built-in speaker 3.6mm fixed Lens DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, Specifications Image Sensor: 1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) Effective Pixels: 1920 (H) × 1080 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s RAM: 128 MB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom ROM: 128 MB Gain Control (AGC): Auto/Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Lens Mount: M12 Close Focus Distance: 1.1 m Day/Night: Auto(ICR)/Color/B/W DORI Distance: 53.8 m (Detect), 21.5 m (Observe), 10.8 m (Recognize), 5.4 m (Identify) Lens: 3.6mm fixed Lens S/N Ratio: >58dB Back Light Compensation: BLC/ HLC/ DWDR IR Control: Auto, Manual IR Number: 1 IR LED, 1 Warm light IR: IR Range of 30 Mtr. Warm Light: Warm Light Range of 30 Mtr. Smart IR: Support Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Stream Capability: Triple stream Frame Rate: Main stream: 2MP (1920 × 1080)@1–25/30 fps Sub stream 1: 720P (1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Angle of view: H: 86°, V: 46°, D: 103° Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Resolution: 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Audio: Built-in Mic Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower) Video Format: PAL/NTSC ROI: Support (4 areas) Audio Compression: G.711a, G.711Mu, PCM, Protocol: FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast Ethernet: RJ-45 (10/100 Base-T) Iris Control: Fixed IMD (Intelligent motion detection): Support the classification and accurate detection of human and vehicle Mirror Function: Support Bit Rate Control: CBR/VBR Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Alarm Event: Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception Browser: IE, Chrome, Firefox User/Host: 6 (Total bandwidth: 36 M) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 1.8 W (12 VDC), 2.5 W (PoE); Max.: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Humidity: ≤95%(RH), non-condensing Casing: Metal + Plastic Dimensions: 100.9 mm × 109.9 mm Weight: 320g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
